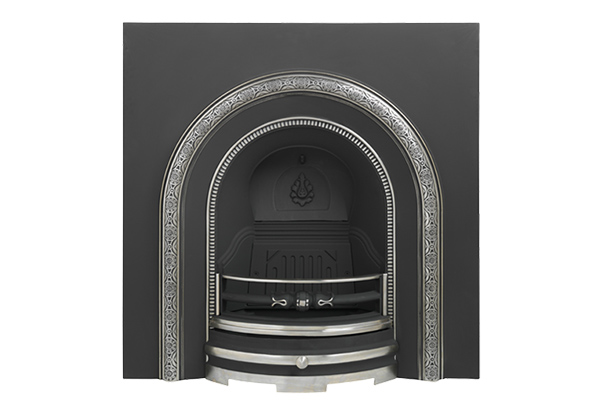

Clifton Arch Polished
PRODUCT DETAILS

Cast Tec offer a range of beautiful cast-iron inserts which include several finish options such as matt black, highlight polished and a traditional antique finish.


The Clifton Arch requires a Mantelpiece and a Hearth to sit on.


Inserts such as the Clifton Arch is purchased with a Fire Back already attached.


The Clifton Arch insert can be supplied with a Gas Coal Effect Fire, an Electric 2kW Inset or a Solid Fuel Kit depending upon your requirements.


TECHNICAL SPECIFICATION

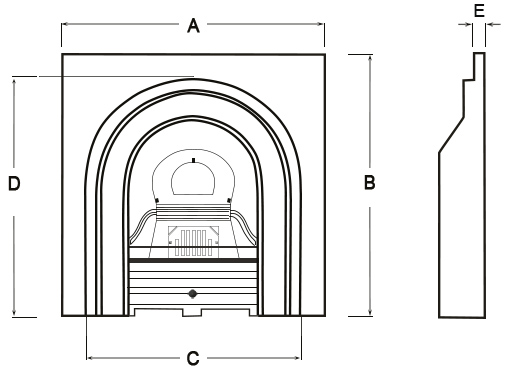

cast-iron arched diagram

Cast

Fascia Sizes Width (A) 950mm
Height (B) 950mm
Inner Band Sizes (Width) (C) 770mm
(Height) (D) 825mm
Rebate (E)10mm


Engine

Gas Cast Tec Arch
Solid Fuel SF Kit C
Electric Electric Arch
cast-iron arched diagram

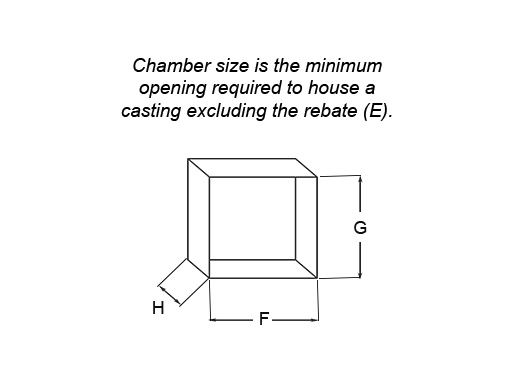

Chamber Sizes

Width (F) 660mm
Height (G) 790mm
Depth (H) 190mm
