Polaris Integra Regal
PRODUCT DETAILS

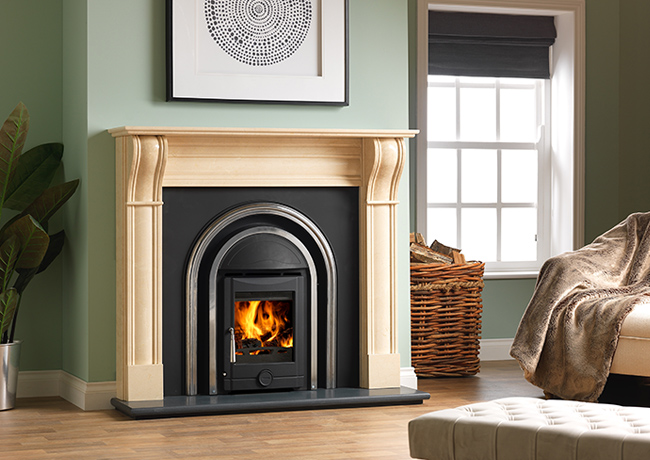

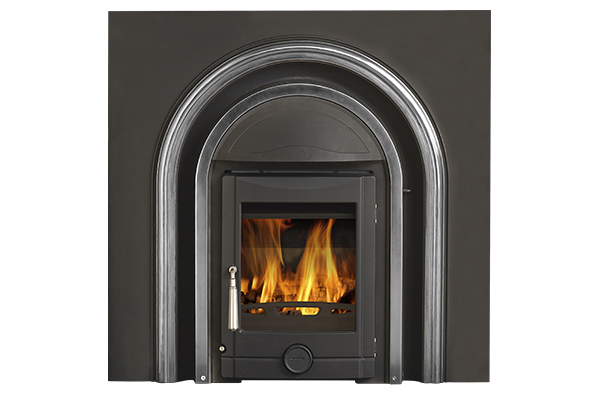

The Polaris Integra Regal is a traditional cast-iron arched insert integrated with our Polaris Inset Eco multi-fuel stove. This combination gives the appearance of a classic cast-iron fireplace but incorporates one of the most efficient and contemporary wood burning stoves on the market today.


Designed in the UK this fireplace is sturdy, practical and sports a convector chamber (producing additional heat from below the canopy), a wide screen for viewing, a riddling action which shakes ash into the ashpan and has the option of a removable handle, making it safer to open the stove door before the stove has cooled down.


With a nominal heat output up to 5kW (therefore no additional air vent required in your room) we are confident offer a 10 year conditional warranty on this stove excluding internal consumable parts such as the window, baffle plate, bricks, bottom grate, ashpan and rope seals.


The Polaris Inset Eco multi-fuel stove complies with EcoDesign 2022 regulations and with its high efficiency and low carbon emissions is allowed by DEFRA to be used in smoke-controlled areas across the UK for the burning of seasoned wood and HETAS approved smokeless fuels.


View Installation and User Manual
FEATURE AND BENEFITS


  • multi-fuel grate for wood burning or smokeless fuels
  • primary air burn (control on door)
  • airwash secondary burn (lever on right of trim)
  • convection chamber increases efficiency
  • riddle action shakes ash into ashpan (control bottom left of door)
  • fixed or detachable door handle option
  • 10 year conditional warranty


TECHNICAL SPECIFICATION
polaris insert eco diagram
WOODANTHRACITE
Nominal Heat Output4.6kW 4.8kW
Energy Efficiency79.2% 76.8%
FuelMulti-Fuel
Fuel Outlet Top
Fuel Pipe Dimension 125mm (5")
Minimum Fuel Size125mm (5")
Dist. CombustiblesSide: 350 mm
Above: 600 mm
Operational ModeIntermittent*
Construction Cast-iron
Finish High Temp. Resistance Paint
Weight 75Kg
*Intermittent combustion in this context means normal use of the STOVE, i.e., fuel is added as soon as the fuel has burnt down. This is not intending for overnight burning.
