Polaris Integra Eden
PRODUCT DETAILS

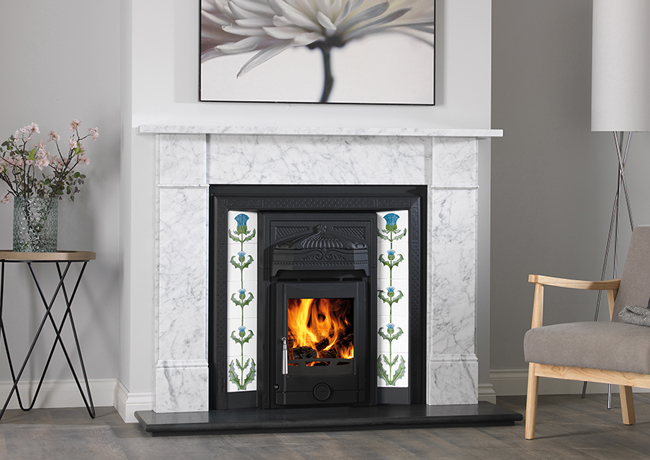

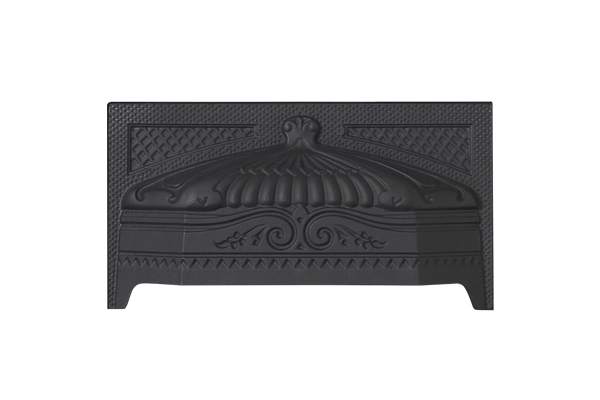

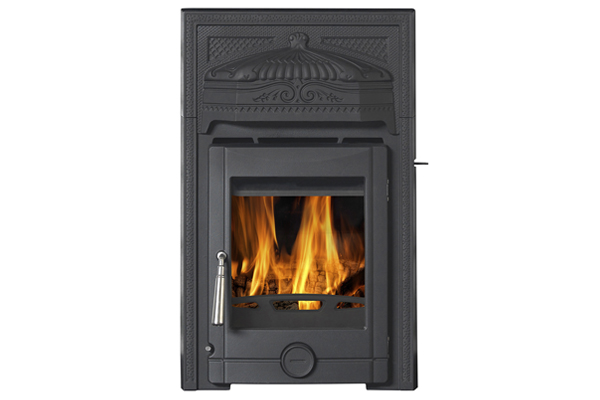

The Polaris Eden is a traditional tiled cast-iron insert with a classic and authentic design to the canopy.


The Eden has a matt black finish and integrates perfectly with the matt black Polaris Integra Inset fitting snugly into a dedicated opening inside the external cast-iron fascia.


The mantelpiece shown is the Flat Victorian shown here in traditional Italian Carrara marble. (Our Italian Carrara mantels are shown on the Stone mantelpieces page).


The hearth is honed Shanxi Granite in our Munro style and we recommend that it be sectioned for solid fuel to allow for expansion. See hearths on the Hearth page.

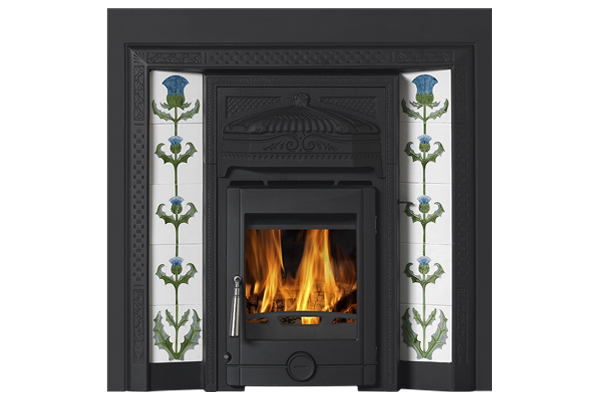

The tile set shown is the Thistle of Tay, which has three different colourways.



View Installation and User Manual
FEATURE AND BENEFITS
  • multi-fuel grate for wood burning or smokeless fuels
  • primary air burn (control on door)
  • airwash secondary burn (lever on right of trim)
  • convection chamber increases efficiency
  • riddle action shakes ash into ashpan (control bottom left of door)
  • fixed or detachable door handle option
  • 10 year conditional warranty
TECHNICAL SPECIFICATION

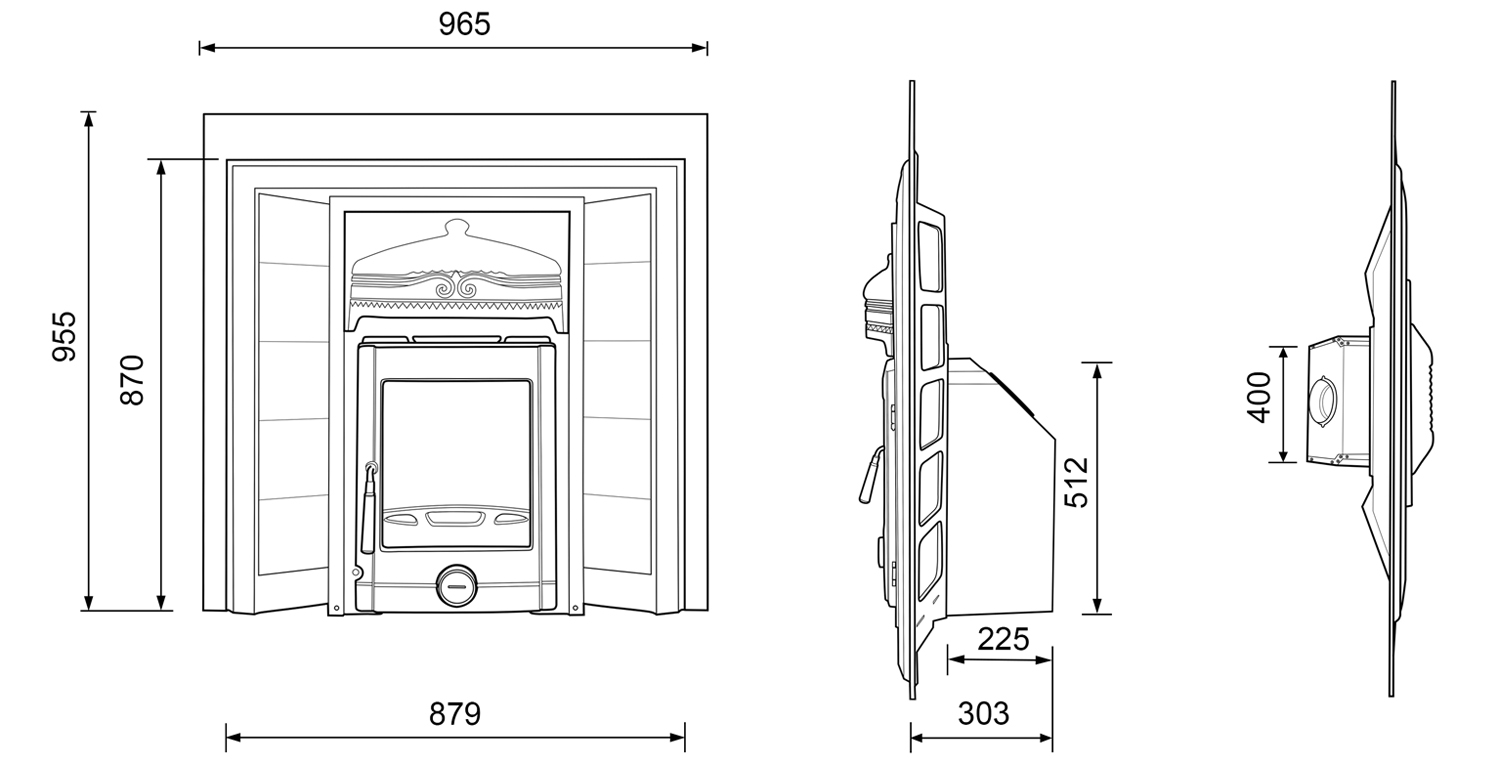

polaris insert eco diagram
WOODANTHRACITE
Nominal Heat Output4.6kW 4.8kW
Energy Efficiency79.2% 76.8%
FuelMulti-Fuel
Fuel Outlet Top
Fuel Pipe Dimension 125mm (5")
Minimum Fuel Size125mm (5")
Dist. CombustiblesSide: 350 mm >Above: 600 mm
Operational ModeIntermittent*
Construction Cast-iron
Finish High Temp. Resistance Paint
Weight 75Kg
*Intermittent combustion in this context means normal use of the STOVE, i.e., fuel is added as soon as the fuel has burnt down. This is not intending for overnight burning.
Cast Tec Ltd. reserve the right to delay or withdraw products, change designs, specifications or materials without prior notice due to continuous product development or supply issues. Photographs and designs shown in this website are the copyright and design rights of Cast Tec Ltd. and can only be used or copied with permission.
