Polaris Integra Art Noveau
PRODUCT DETAILS

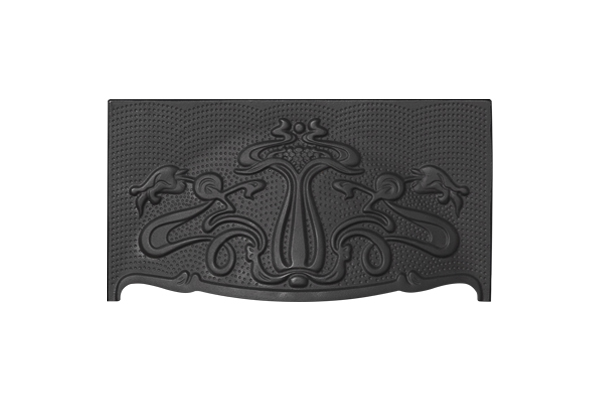

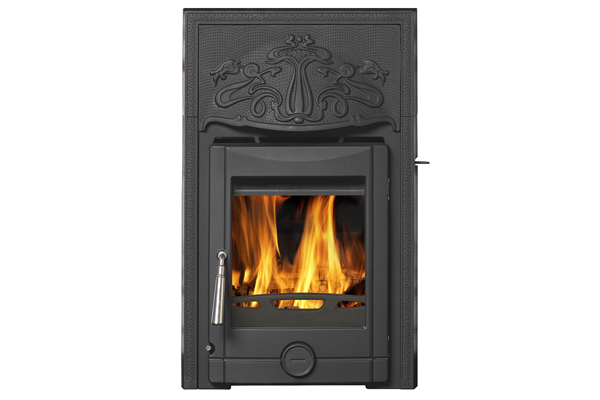

The Polaris Art Nouveau is an authentic tiled cast-iron insert with a typical art nouveau design to the canopy.


The Art Nouveau has a matt black finish and integrates perfectly with the matt black Polaris Integra Inset fitting snugly into a dedicated opening inside the external cast-iron fascia.

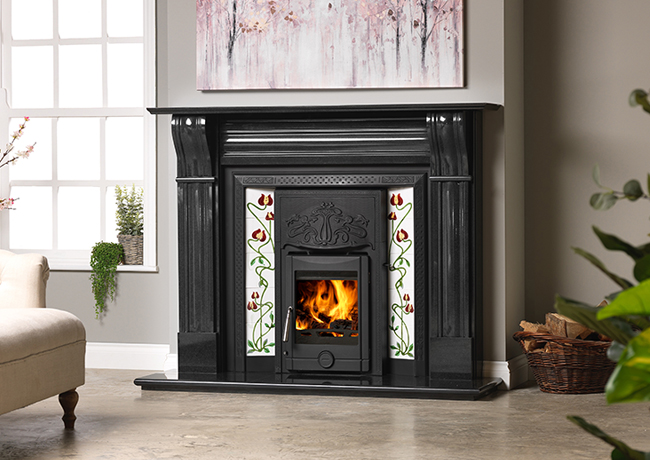

The mantelpiece shown is the Durham in Polished Shanxi Black Granite (Our Shanxi Granite mantels are shown on the Stone mantelpieces page).


The Durham mantel is also available in Spanish Crema Marfil marble.

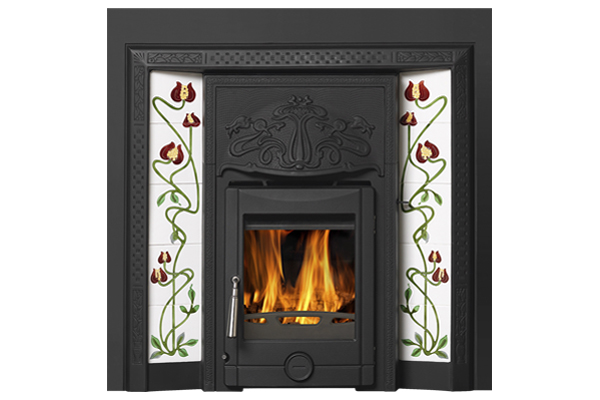

The tile set shown is the Mediterranean Poppy, which has four different colourways and mirrored left- and right-hand sides.


View Installation and User Manual
FEATURE AND BENEFITS
  • multi-fuel grate for wood burning or smokeless fuels
  • primary air burn (control on door)
  • airwash secondary burn (lever on right of trim)
  • convection chamber increases efficiency
  • riddle action shakes ash into ashpan (control bottom left of door)
  • fixed or detachable door handle option
  • 10 year conditional warranty
TECHNICAL SPECIFICATION
polaris art noveau insert eco diagram
WOODANTHRACITE
Nominal Heat Output4.6kW 4.8kW
Energy Efficiency79.2% 76.8%
FuelMulti-Fuel
Fuel Outlet Top
Fuel Pipe Dimension 125mm (5")
Minimum Fuel Size125mm (5")
Dist. CombustiblesSide: 350 mm >Above: 600 mm
Operational ModeIntermittent*
Construction Cast-iron
Finish High Temp. Resistance Paint
Weight 75Kg
*Intermittent combustion in this context means normal use of the STOVE, i.e., fuel is added as soon as the fuel has burnt down. This is not intending for overnight burning.
