Aston Antique Tiled Insert
PRODUCT DETAILS

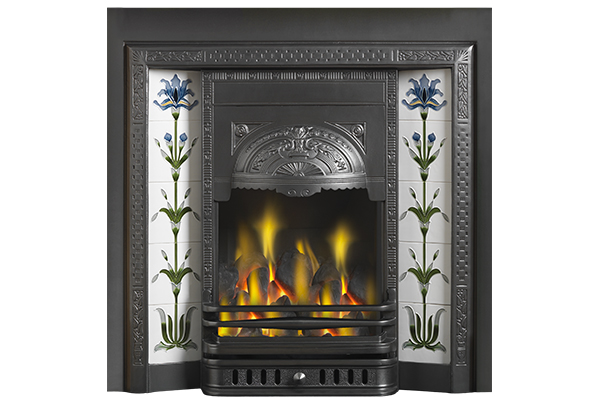

The Aston Integra is a traditional tiled insert with an attractive patterned design. Shown here in an antique (graphite) finish, the Aston is also available in a matt black or highlight polished finish.

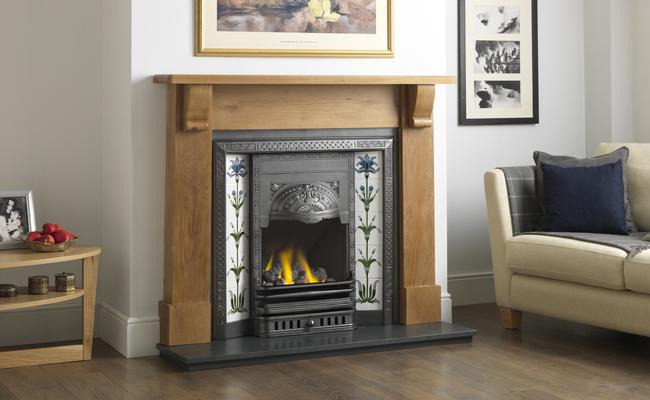

The Aston is displayed with the Brampton mantle in solid oak (with light oak finish), a Flag Iris hand painted tile set in blue and ivory and with a honed black granite hearth.


Our full range of hand painted tile sets and cast-iron sleeve alternatives are shown on the tiles's page. Our full range of oak mantels can be seen on the mantel's page.


TECHNICAL SPECIFICATION
tiled insert diagram
Width (A) 968mm
Height (B) 958mm
Minimum mantel aperture required (Width) (C) 888mm
Minimum mantel aperture required (Height) (D) 877mm
Rebate (E)70mm
Gas Fire Options


convertor_plus
FLUE TYPESGAS FIRE OPTIONS
Traditional chimney (Class 1) Integra HO
convertor_plus

Class 1
Convertor Plus
Integra HE (Glass Fronted)
Integra Super Slim
Pre-Cast FlueIntegra Super Slim
Pre-Cast Flue

Pre-cast
Pre-Fabricated (Class 2) Integra HO
Pre-Fabricated

Class 2
Convertor Plus
Integra HE (Glass Fronted)
Integra Super Slim
No ChimneyBalanced Flue
flue no chimney

No Chimney


Gas Fire Specifications


convector plus
CONVECTOR PLUS
Technical DataControl Options
Output High4.1kW Manual Yes
Efficiency67% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
convector plus




HO (high output)
INTEGRA HO (High Output)
Technical DataControl Options
Output High2.9kW Manual Yes
Efficiency41% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo NOTE: Integra HO is NOT suitable for primary heating purposes.
convector plus




integra high efficiency (HE)
INTEGRA HE (High Efficiency) (Glass Fronted)
Technical DataControl Options
Output High3.3kW Manual Yes
Efficiency80% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
convector plus




integra_high_efficiency_(HE)
INTEGRA SUPER SLIM
Technical DataControl Options
Output High2.8kW Manual Yes
Efficiency40% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo NOTE: Integra Super Slim is NOT suitable for primary heating purposes.




balance flue
BALANCED FLUE
Technical DataControl Options
Output High3.6kW Manual Yes
Efficiency88% Slide No
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
