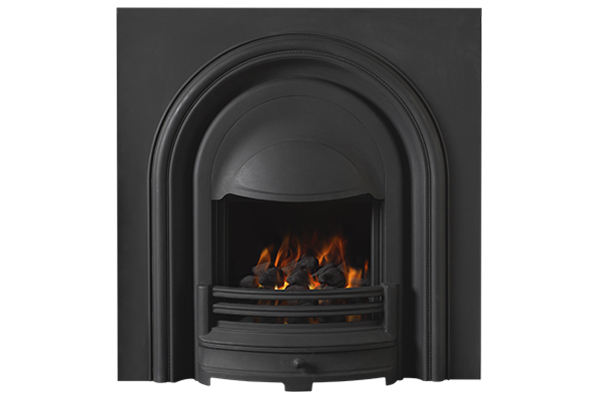

Royal Arch Insert
PRODUCT DETAILS

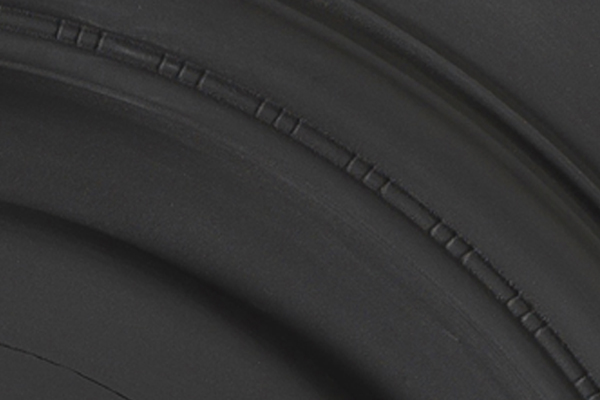

The Royal Integra is a plain arched insert in a simple matt black finish.

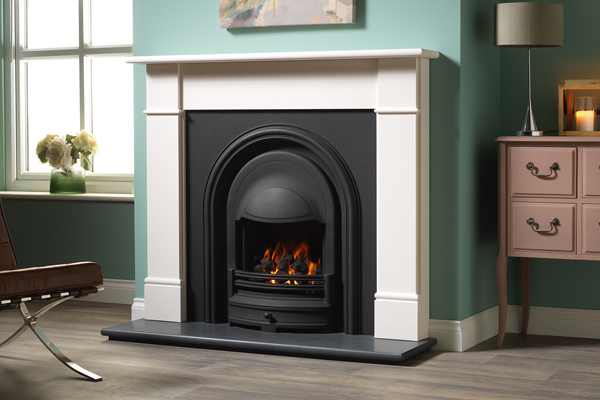

The matt finish of the casting is complimented by a polished black granite hearth, but contrasts nicely with the lighter coloured Hexham mantel shown here in Mocha Beige micro marble.


TECHNICAL SPECIFICATION
arched insert diagram
Width (A) 944mm
Height (B) 941mm
Minimum mantel aperture required (Width) (C) 722mm
Minimum mantel aperture required (Height) (D) 860mm
Rebate (E)55mm
Gas Fire Options


convertor_plus
FLUE TYPESGAS FIRE OPTIONS
Traditional chimney (Class 1) Integra HO
convertor_plus

Class 1
Convertor Plus
Integra HE (Glass Fronted)
Integra Super Slim
Pre-Cast FlueIntegra Super Slim
Pre-Cast Flue

Pre-cast
Pre-Fabricated (Class 2) Integra HO
Pre-Fabricated

Class 2
Convertor Plus
Integra HE (Glass Fronted)
Integra Super Slim
No ChimneyBalanced Flue
flue no chimney

No Chimney


Gas Fire Specifications


convector plus
CONVECTOR PLUS
Technical DataControl Options
Output High4.1kW Manual Yes
Efficiency67% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
convector plus




HO (high output)
INTEGRA HO (High Output)
Technical DataControl Options
Output High2.9kW Manual Yes
Efficiency41% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo NOTE: Integra HO is NOT suitable for primary heating purposes.
convector plus




integra high efficiency (HE)
INTEGRA HE (High Efficiency) (Glass Fronted)
Technical DataControl Options
Output High3.3kW Manual Yes
Efficiency80% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
convector plus




integra_high_efficiency_(HE)
INTEGRA SUPER SLIM
Technical DataControl Options
Output High2.8kW Manual Yes
Efficiency40% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo NOTE: Integra Super Slim is NOT suitable for primary heating purposes.




balance flue
BALANCED FLUE
Technical DataControl Options
Output High3.6kW Manual Yes
Efficiency88% Slide No
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo


Cast Tec Ltd. reserve the right to delay or withdraw products, change designs, specifications or materials without prior notice due to continuous product development or supply issues. Photographs and designs shown in this website are the copyright and design rights of Cast Tec Ltd. and can only be used or copied with permission.
