regal arch cast iron insert fireplace

PRODUCT DETAILS

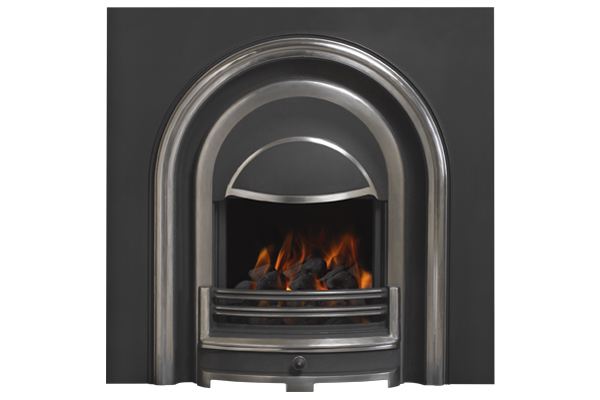

The Regal Integra is a plain arched cast iron insert with the inner and outer bands polished along with the canopy rim and fire-front.

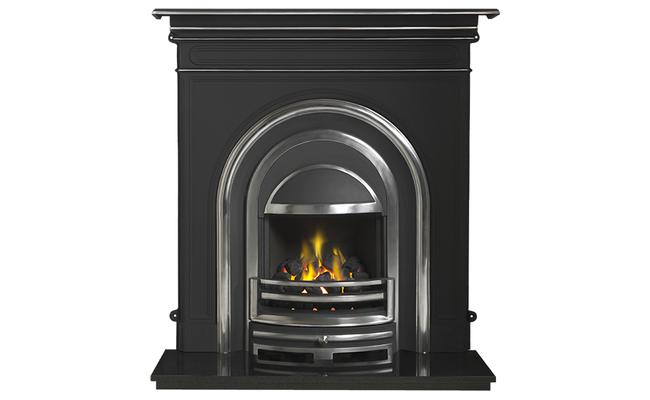

The Regal is seen sitting on a polished black granite hearth, which shows a pleasant reflection of the polished area of the casting.

The mantel shown is the Alnwick in Mocha Beige micro marble. This mantel is available in two shelf sizes, 1500mm (59″) and 1350mm (53 ″).

TECHNICAL SPECIFICATION

Width (A)	944mm
Height (B)	941mm
Minimum mantel aperture required (Width) (C)	722mm
Minimum mantel aperture required (Height) (D)	860mm
Rebate (E)	55mm

Gas Fire Options

Gas Fire Specifications

INTEGRA HO (High Output)
Technical Data		Control Options
Output High	2.9kW	Manual	Yes
Efficiency	41%	Slide	Yes
Natural Gas	Yes	Remote	Yes
L.P.G Option	No
Air vent required	No	NOTE: Integra HO is NOT suitable for primary heating purposes.

INTEGRA HE (High Efficiency) (Glass Fronted)
Technical Data		Control Options
Output High	3.3kW	Manual	Yes
Efficiency	80%	Slide	Yes
Natural Gas	Yes	Remote	Yes
L.P.G Option	No
Air vent required	No

INTEGRA SUPER SLIM
Technical Data		Control Options
Output High	2.8kW	Manual	Yes
Efficiency	40%	Slide	Yes
Natural Gas	Yes	Remote	Yes
L.P.G Option	No
Air vent required	No	NOTE: Integra Super Slim is NOT suitable for primary heating purposes.
