Decorative Arch Polished Insert
PRODUCT DETAILS

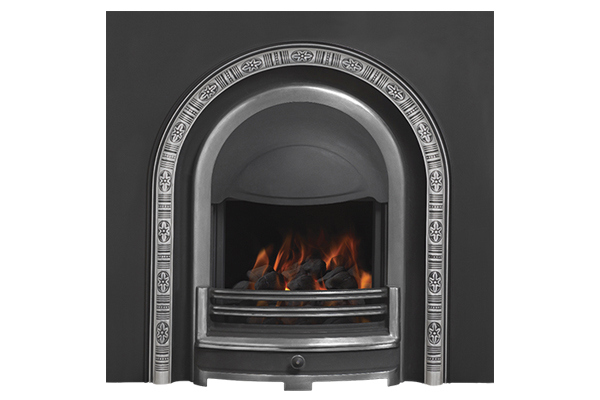

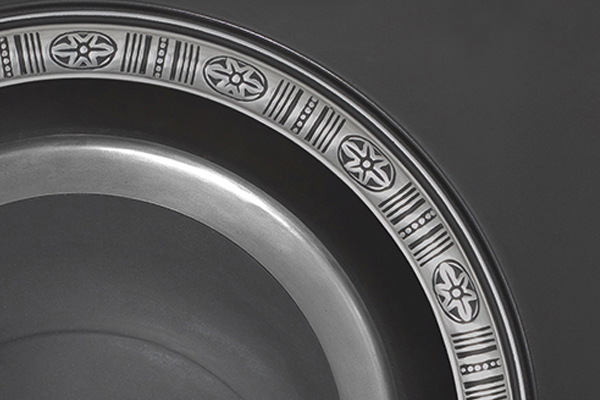

The Decorative Arch Polished Insert is a decorative arched cast iron insert similar to our Royal and Majestic, however, it sports highlight polishing to the plain inner and decorative outer bands of the cast iron fireplace along with the fire front.

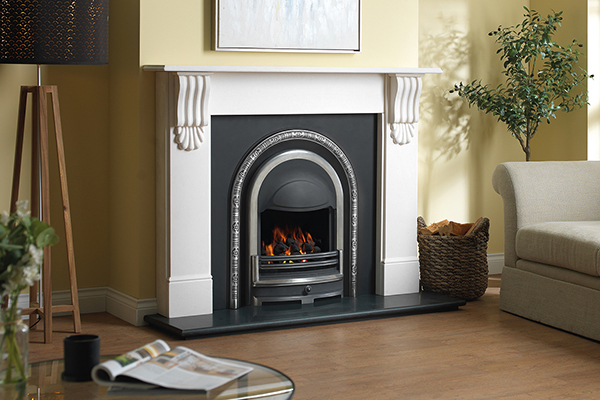

The mantelpiece shown is the ever-popular Victorian Corbel in pure Turkish limestone. This mantel is also available in pure Italian Carrara and polished Shanxi black granite (called the Athena).


The hearth is honed Shanxi black granite in our Munro style.

TECHNICAL SPECIFICATION
arched insert diagram
Width (A) 938mm
Height (B) 939mm
Minimum mantel aperture required (Width) (C) 725mm
Minimum mantel aperture required (Height) (D) 855mm
Rebate (E)55mm
Gas Fire Options


convertor_plus
FLUE TYPESGAS FIRE OPTIONS
Traditional chimney (Class 1) CastTec HO
convertor_plus

Class 1
Convertor Plus
CastTec HE (Glass Fronted)
CastTec Super Slim
Pre-Cast FlueCastTec Super Slim
Pre-Cast Flue

Pre-cast
Pre-Fabricated (Class 2) CastTec HO
Pre-Fabricated

Class 2
Convertor Plus
CastTec HE (Glass Fronted)
CastTec Super Slim
No ChimneyBalanced Flue
flue no chimney

No Chimney


Gas Fire Specifications


convector plus
CONVECTOR PLUS
Technical DataControl Options
Output High4.1kW Manual Yes
Efficiency67% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
convector plus




HO (high output)
CastTec HO (High Output)
Technical DataControl Options
Output High2.9kW Manual Yes
Efficiency41% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo NOTE: CastTec HO is NOT suitable for primary heating purposes.
convector plus




integra high efficiency (HE)
CastTec HE (High Efficiency) (Glass Fronted)
Technical DataControl Options
Output High3.3kW Manual Yes
Efficiency80% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
convector plus




integra_high_efficiency_(HE)
CastTec SUPER SLIM
Technical DataControl Options
Output High2.8kW Manual Yes
Efficiency40% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo NOTE: CastTec Super Slim is NOT suitable for primary heating purposes.




balance flue
BALANCED FLUE
Technical DataControl Options
Output High3.6kW Manual Yes
Efficiency88% Slide No
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo


Cast Tec Ltd. reserve the right to delay or withdraw products, change designs, specifications or materials without prior notice due to continuous product development or supply issues. Photographs and designs shown in this website are the copyright and design rights of Cast Tec Ltd. and can only be used or copied with permission.
