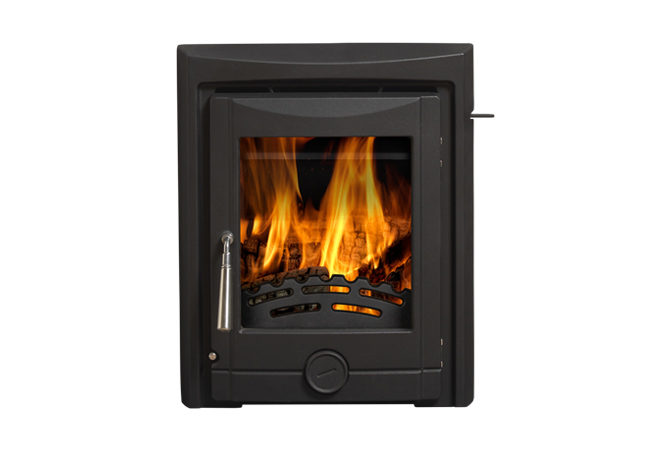

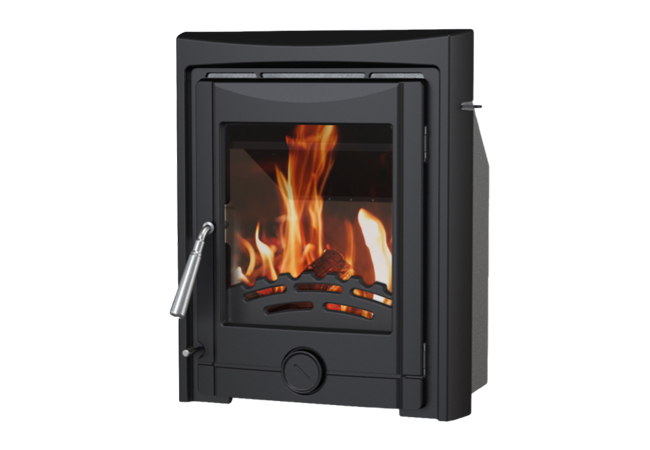

Cougar Inset Eco Plus
PRODUCT DETAILS


The Cougar Inset Eco Plus is a sturdy cast-iron inset stove sporting a large glass window to allow for the maximum view.


A convection chamber allows cold air to enter below the stove and pass up through the chamber whilst warming up and then re-enters the room through vents above the stove door creating an increased efficiency.


View Installation and User Manual
Manual  PDF
Parts List  PDF
Energy Label  PDF
FEATURE AND BENEFITS


  • multi-fuel grate for wood burning or smokeless fuels
  • primary air burn (control on door)
  • airwash secondary burn (lever on right of trim)
  • convection chamber increases efficiency
  • riddle action shakes ash into ashpan (control bottom left of door)
  • fixed or detachable door handle option
  • 10 year conditional warranty


New Handle

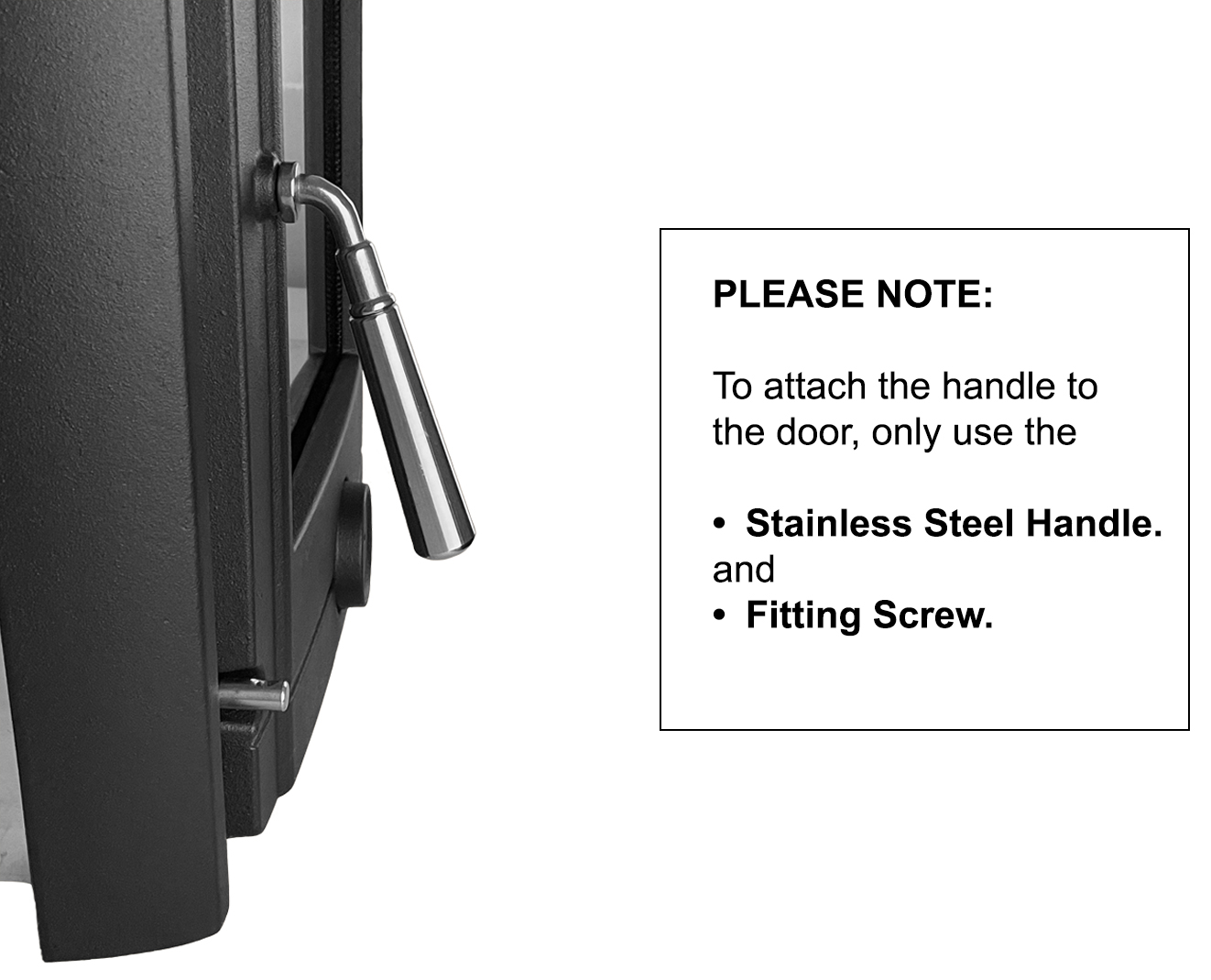

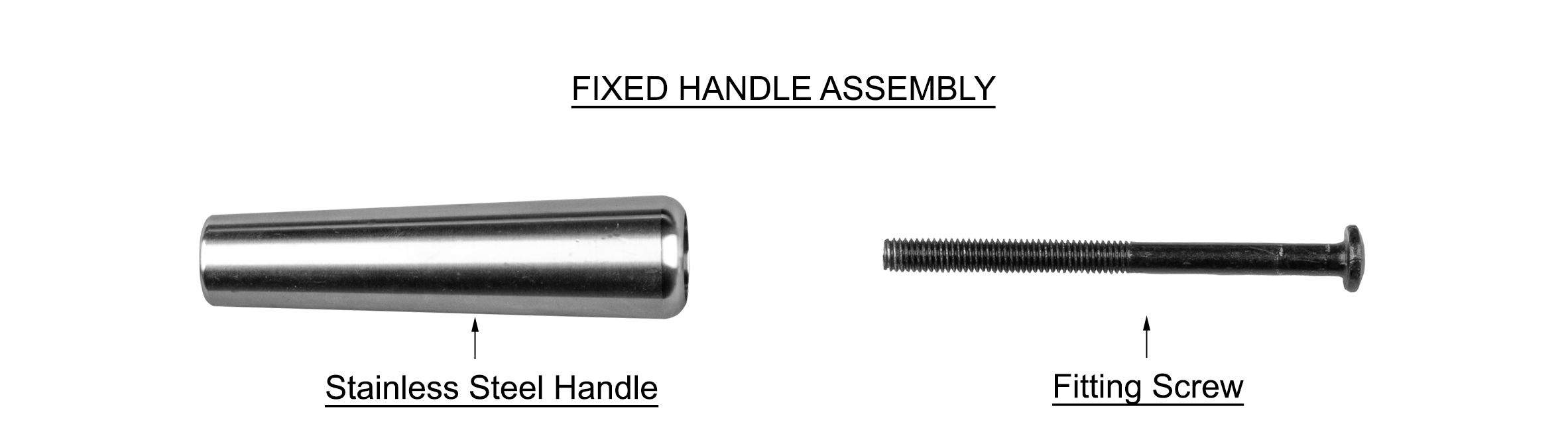

Fixed
fixed handle





fixed handle

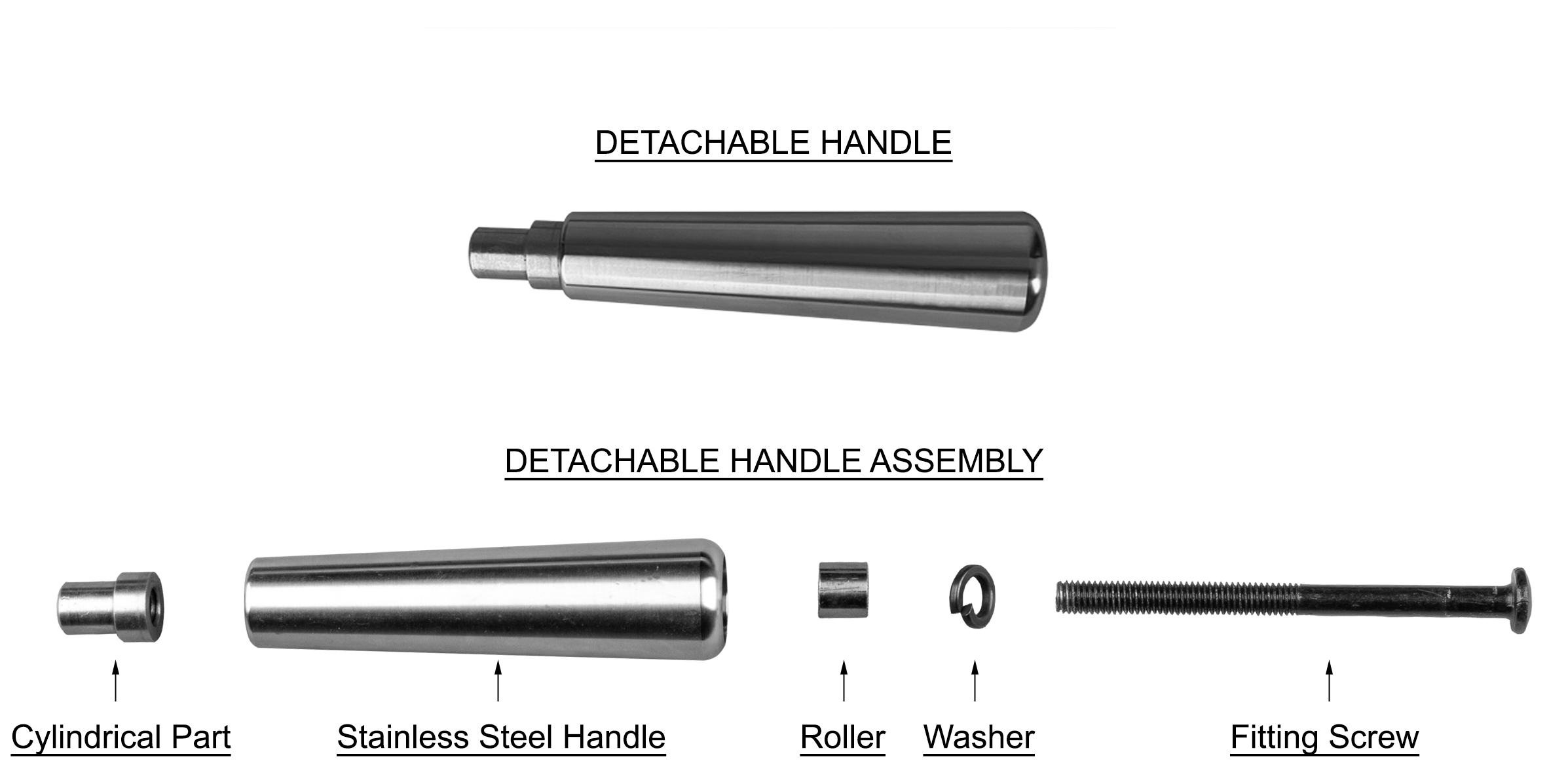

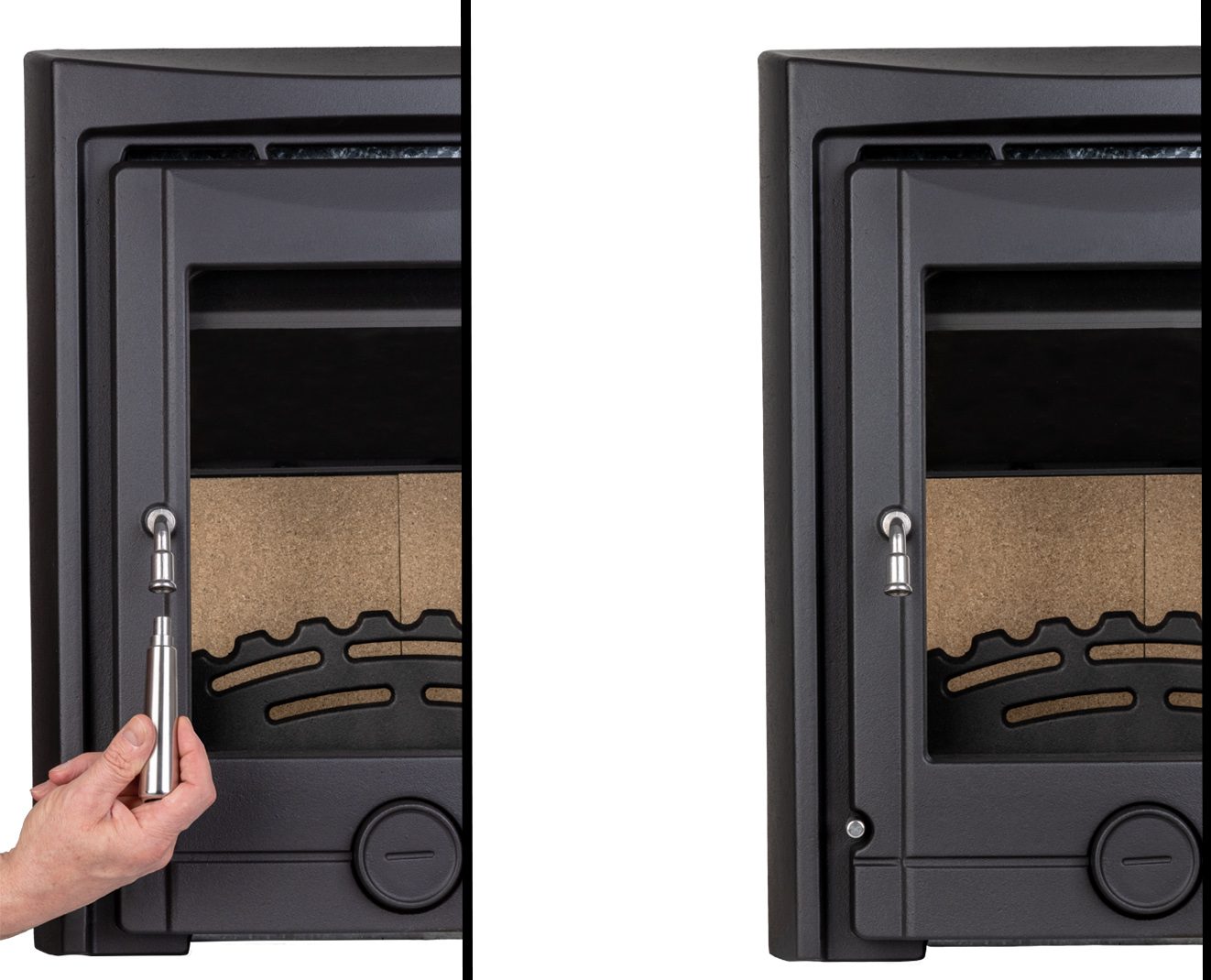

Detachable
detachable handle

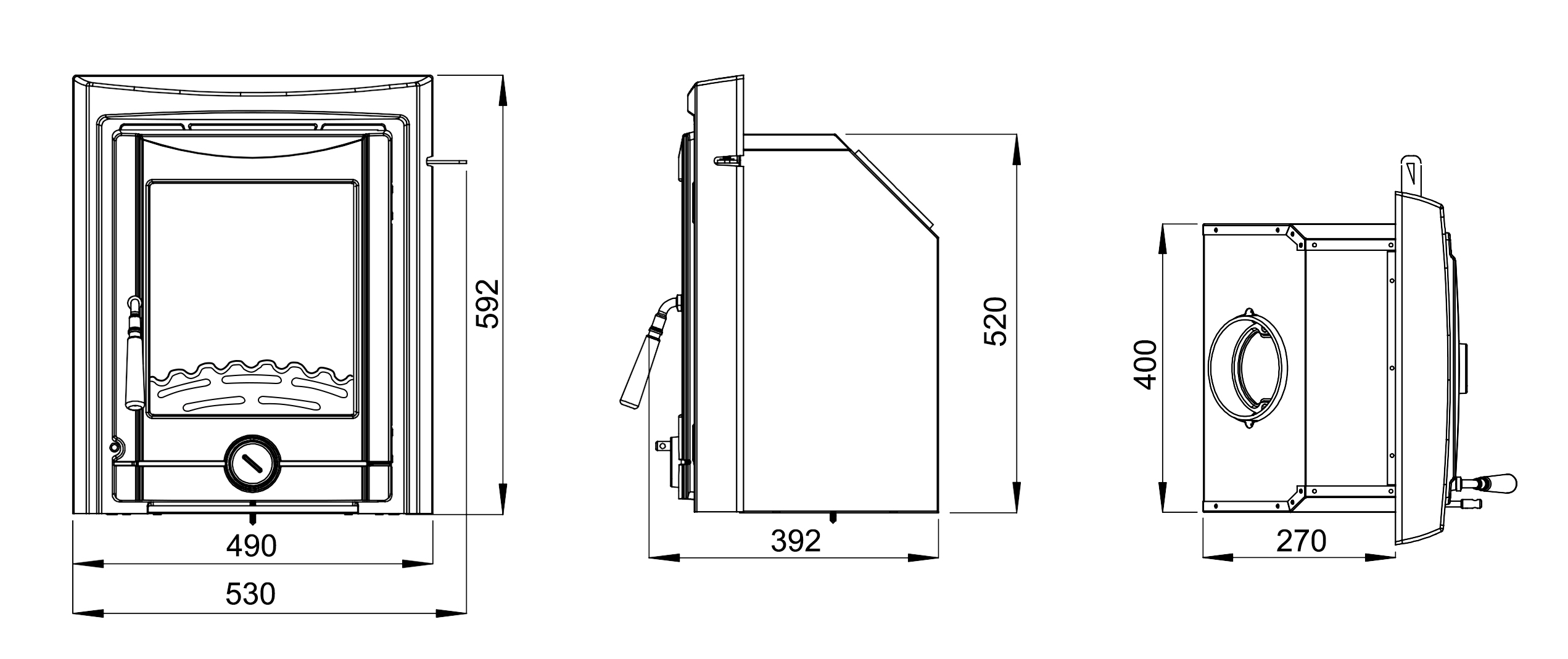

cougar diagram
TECHNICAL SPECIFICATION
cougar diagram
WOODANTHRACITE
Nominal Heat Output4.6kW 4.8kW
Energy Efficiency79.2% 76.8%



FuelMulti-Fuel
Fuel Outlet Top
Fuel Pipe Dimension 125mm (5")
Minimum Fuel Size125mm (5")
Dist. CombustiblesSide: 350 mm
Above: 600 mm
Operational ModeIntermittent*
Construction Cast-iron
Finish High Temp. Resistance Paint
Weight 75Kg
*Intermittent combustion in this context means normal use of the STOVE, i.e., fuel is added as soon as the fuel has burnt down. This is not intending for overnight burning.
