Horizon 5 wide (Log Store)
PRODUCT DETAILS


The Horizon 5W (or Wide) Log Store is the sister of the smaller Horizon 5 Log Store multi-fuel steel stove. Whilst both stoves have been tested and approved as 5kW stoves, the 5W Log Store model is wider in size allowing for a better view of the combustion chamber.


The Horizon 5W Log Store, like its sister, is also available as a free standing model on four legs.




View Installation and User Manual




FEATURE AND BENEFITS


  • multi-fuel grate for wood burning or smokeless fuels
  • primary air burn (control on door)
  • airwash secondary burn (lever above door)
  • tertiary air inlets improve efficiency
  • DEFRA smoke control exempt
  • 10 year conditional warranty


TECHNICAL SPECIFICATION

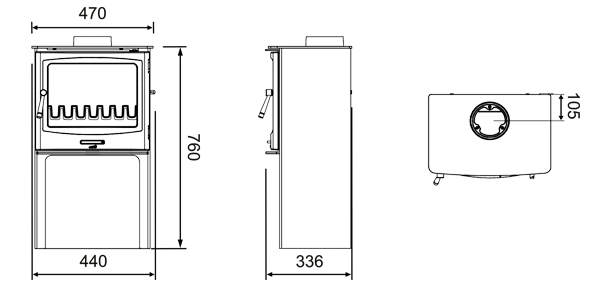

horizon 5 wide legs diagram


Fuel Type Wood & Smokeless
Nominal Heat Output 4.9kW
Construction Mild Steel
Weight 80Kg
Flue Outlet Top or Rear 125mm (5")
Efficiency 76.1%
Mean Flue Draught 12pa
Air Vent Required Yes
