Art Nouveau Matt Black Tiled Insert
PRODUCT DETAILS

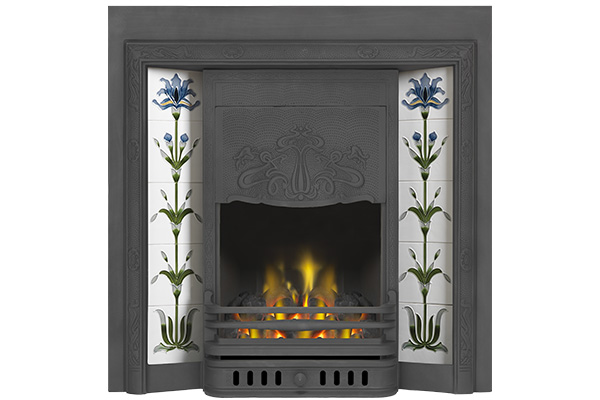

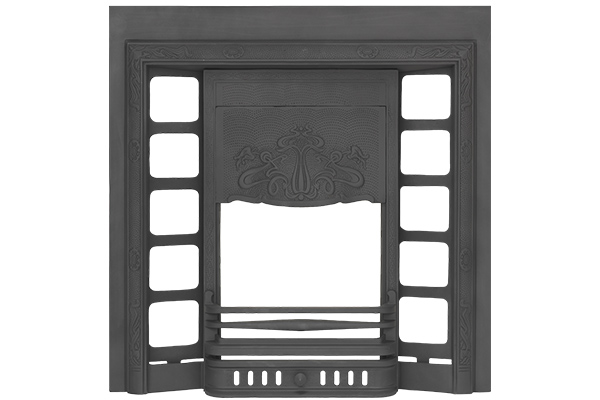

The Art Nouveau Integra is a traditional tiled cast-iron insert with a beautiful and typical art nouveau period tulip design to the canopy and outer band. This casting is shown in a matt black finish and is also available in antique.

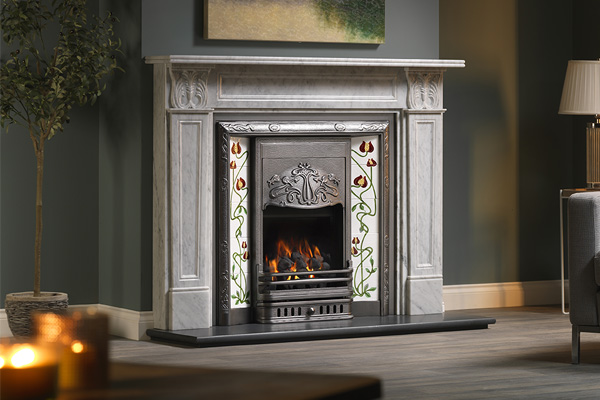

The mantelpiece shown is the stunning Corinthian in pure Italian Carrara marble. This mantelpiece displays hand-carved acanthus leaves to the top of both legs and beautiful incised panels to the legs and crosspiece.


Our full range of stone mantels can be seen on the Stone mantel's page.


The Art Nouveau is shown with a set of Tulip hand painted tubeline tiles in ivory and burgundy. This tile set has a mirror image left and right hand side.


Our full range of hand painted tile sets and cast-iron sleeve alternatives are shown on the Tiles's page.


The hearth is honed black granite in our Munro style.


FEATURE AND BENEFITS


TECHNICAL SPECIFICATION
tiled insert diagram
Width (A) 960mm
Height (B) 960mm
Minimum mantel aperture required (Width) (C) 870mm
Minimum mantel aperture required (Height) (D) 870mm
Rebate (E)75mm
Gas Fire Options


convertor_plus
FLUE TYPESGAS FIRE OPTIONS
Traditional chimney (Class 1) Integra HO
convertor_plus

Class 1
Convertor Plus
Integra HE (Glass Fronted)
Integra Super Slim
Pre-Cast FlueIntegra Super Slim
Pre-Cast Flue

Pre-cast
Pre-Fabricated (Class 2) Integra HO
Pre-Fabricated

Class 2
Convertor Plus
Integra HE (Glass Fronted)
Integra Super Slim
No ChimneyBalanced Flue
flue no chimney

No Chimney


Gas Fire Specifications


convector plus
CONVECTOR PLUS
Technical DataControl Options
Output High4.1kW Manual Yes
Efficiency67% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
convector plus




HO (high output)
INTEGRA HO (High Output)
Technical DataControl Options
Output High2.9kW Manual Yes
Efficiency41% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo NOTE: Integra HO is NOT suitable for primary heating purposes.
convector plus




integra high efficiency (HE)
INTEGRA HE (High Efficiency) (Glass Fronted)
Technical DataControl Options
Output High3.3kW Manual Yes
Efficiency80% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
convector plus




integra_high_efficiency_(HE)
INTEGRA SUPER SLIM
Technical DataControl Options
Output High2.8kW Manual Yes
Efficiency40% Slide Yes
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo NOTE: Integra Super Slim is NOT suitable for primary heating purposes.




balance flue
BALANCED FLUE
Technical DataControl Options
Output High3.6kW Manual Yes
Efficiency88% Slide No
Natural GasYes Remote Yes
L.P.G OptionNo
Air vent requiredNo
