Nevis t5 (Traditional) 5kW Eco
PRODUCT DETAILS

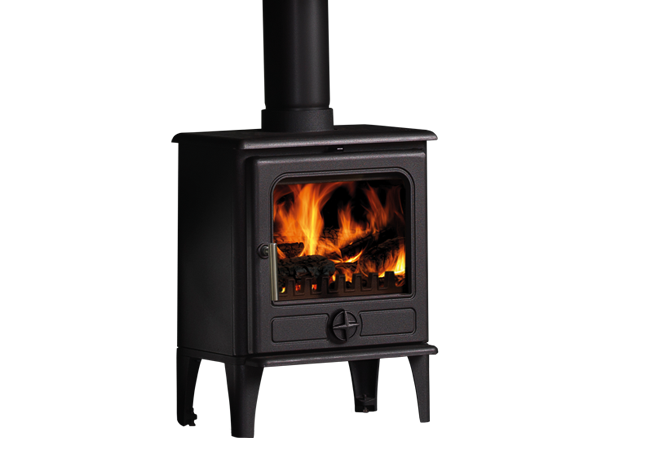

The Nevis T5 is a sturdy cast-iron stove with a heat output up to 5kW and an efficiency of 80.7% when wood is used and 79% when used with Maxibrite.
A multi-fuel grate allows for the use of smokeless fuels, wood and peat.
The Nevis T5 also has the advantage of a Tertiary Air Inlet which mixes pre-heated air with the exhaust gases, allowing the exhaust gases to re-ignite producing a cleaner and more efficient stove.
The mantelpiece shown is the Chilton in Slate Stone and the stove is seen standing on a Honed Black Granite Hearth in our Munro style.
The fireplace chamber is lined with heat resistant vermiculite boards and painted the same colour as the room.
View Installation and User Manual
FEATURE AND BENEFITS
- multi-fuel grate for wood burning or smokeless fuels
- primary air burn (control on door)
- airwash secondary burn (lever above door)
- tertiary air inlets improve efficiency
- DEFRA smoke control exempt
- 10 year conditional warranty

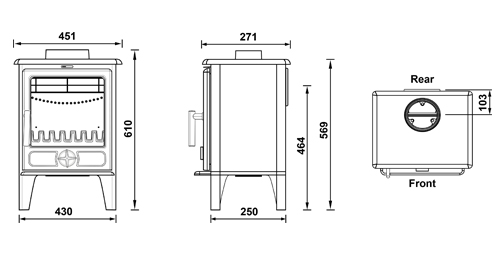

TECHNICAL SPECIFICATION
Nominal Heat Output | up to 5kW |
Construction | Cast-iron |
Weight | 75Kg |
Fuel Outlet | Top & Rear 125mm (5") |
Efficiency Wood | 80.7% |
Efficiency Smokeless Fuel | 79.0% |
Air Vent Required | No |
